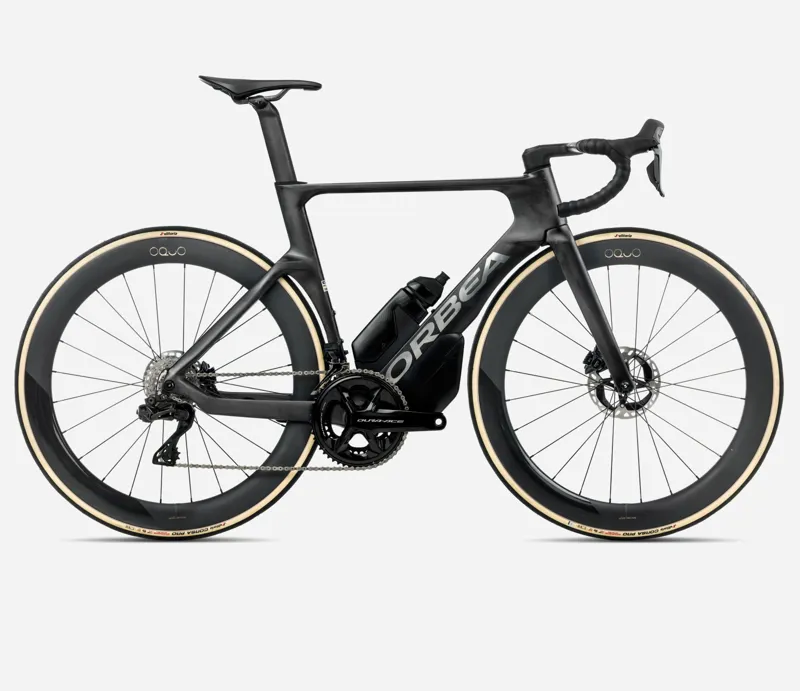

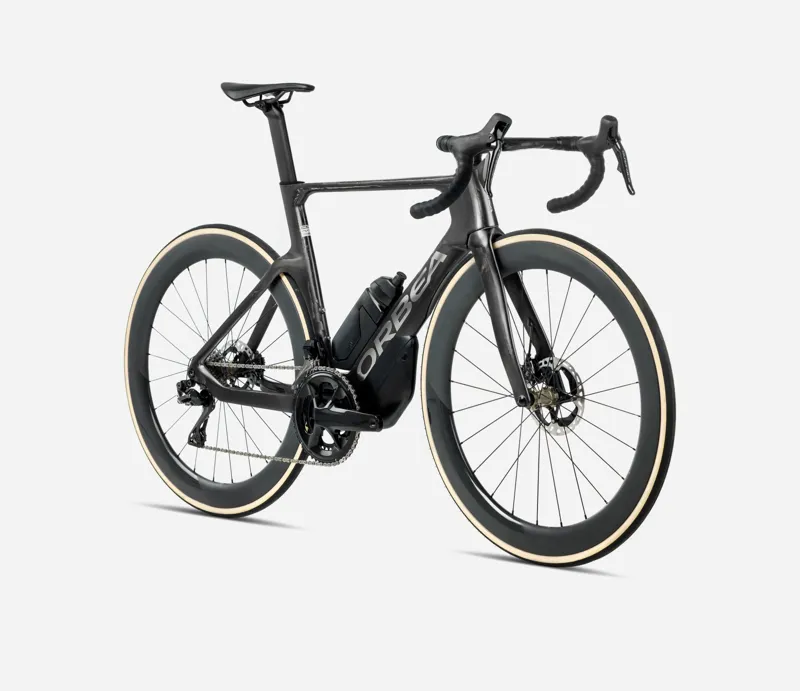

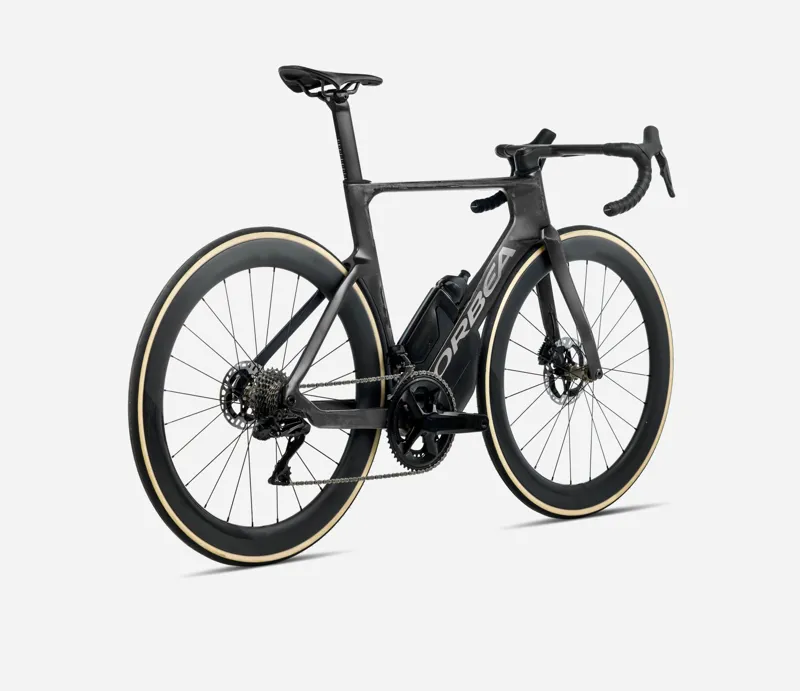

ORCA AERO M10iltd Carbon Raw Matt-2026

Season:2026

Brand:Orbea

Code:T124TTCCCK

Take On The Flats With the Orca Aero M10i ltd
The Orca Aero is an out and out aero race bike, the perfect fit for sprinting for the win in a race or for the town sign sprint. Every Watt that you put in goes straight to the wheels thanks to theOMX Carbonused to create the layup of the frame in a unqiue Monocoque design. This makes the Orca have one of the lightest and stiffest frames.
With Shimano Dura Ace 2x12shifting is smooth and quick even when putting pressue on the pedals, giving you confidence in the final moments of the race. With hydraulic disc brakes you have every confidence to race hard and brake late into the corners saving energy to win later.

Free Speed
For those hunting for every saving possible save 15w at 40km/hr or 28w at 50km/hr keeping you as fresh as possible come the end of the race. Thanks to pairing the aero frame with optimised Oquo wheels and 25-28mm tyres to reduce turbulance around the frame and slice through the air. This bike comes equiped with Vitorria Corsa pro speed 28mm tyres with world tour grip and rolling resistance this bike will fly to your next KOM or race.

Balanced Handling
The Orca Aero has a shorter wheelbase and chainstays to make the bike come alive under the rider, making it responsive and smooth out the saddle and snappy around the corners when you need it most. Paired with theSize Specific Forkthe bike stays firm and controled through all the size options. Pairing this with a lower stack and higher BB makes this bike an aerodynamic weapon perfect for smashing through the flats.

Adaptive Ergonomics
Have no compromise going fast does not mean uncofortable. With improved ergonomics thanks to Orbea's in house bar set up with5 degres of flareon the drops and 15 degress of rotation. Paired with theOMXcarbon Seatpost your perfect fit is within grasp. With a Fizik vento antres with carbon rails the OMX seatpost can be finetuned to keep you feeling race ready and fresh even after multiple hours.

Aero Storage Solutions
No need for a saddle bag thanks to a clip on tool box which improves the aerodynamics of the bike, perfect for time trialing. The bike also comes with an aerodynamic bottle cage and bottle perfect for solo efforts to make the bike as quick as possible.
Technical Information
CategorySpecification
Frameset
FrameOrbea Orca Aero Carbon OMX disc, monocoque construction, HS 1.5", BB 386, powermeter compatible, 12x142mm thru axle, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible
ForkOrbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1.5" tapered head tube, 12x100mm thru axle, thread M12x2 P1, Speed release compatible dropout
Steerer TubeFSA 1-1/2" Integrated Aluminium Cup
Drivetrain
CranksetShimano Dura-Ace R9200 36x52t
ShiftersShimano R9270
CassetteShimano Dura-Ace R9200 11-30t 12-Speed
Rear DerailleurShimano Dura-Ace Di2 R9250
Front DerailleurShimano Dura-Ace Di2 R9250
ChainShimano CN-9100
Cockpit
HandlebarIntegrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
Brakes
BrakesShimano R9270 Hydraulic Disc
Rotors160mm Front / 140mm Rear
Brakes ConfigurationN/A
Wheels
WheelsOquo Road Aero RA57LTD
TyresVittoria Corsa Pro Speed 29-622 TLR wide rim G2.0 OEM HP
Front Wheel AxleOrbea Thru Axle 12x100mm M12x2 P1 Lite
Rear Wheel AxleOrbea Thru Axle 12x142mm M12x2 P1 Lite
HubOQUO Q10
Components
SeatpostOC Road Aero RA10 Carbon Ultralight, SB0/25, with Micro tilt adjustment
SaddleFizik Vento Antares R1 Carbon Rail 140mm
Accessories
Handlebar TapeOrbea Anti-Slippery/Shock Proof
HydrationOC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10
StorageOC Aero Toolbox TB01PP
Sizing Information
Frame SizeHeight (cm)Height (inches)
47155 - 16061.1" - 63.0"
49160 - 16663.0" - 65.4"
51167 - 17265.7" - 67.7"
53173 - 17968.1" - 70.5"
55180 - 18570.9" - 72.8"
57186 - 19173.2" - 75.2"
60192 - 20775.6" - 81.5"
