Terra M20team Nickel - Cinnamon Matt-2026

Season:2026

Brand:Orbea

Code:T140TTCCGP

Orbea Terra M20 Team – Built for Gravel, Designed for Adventure

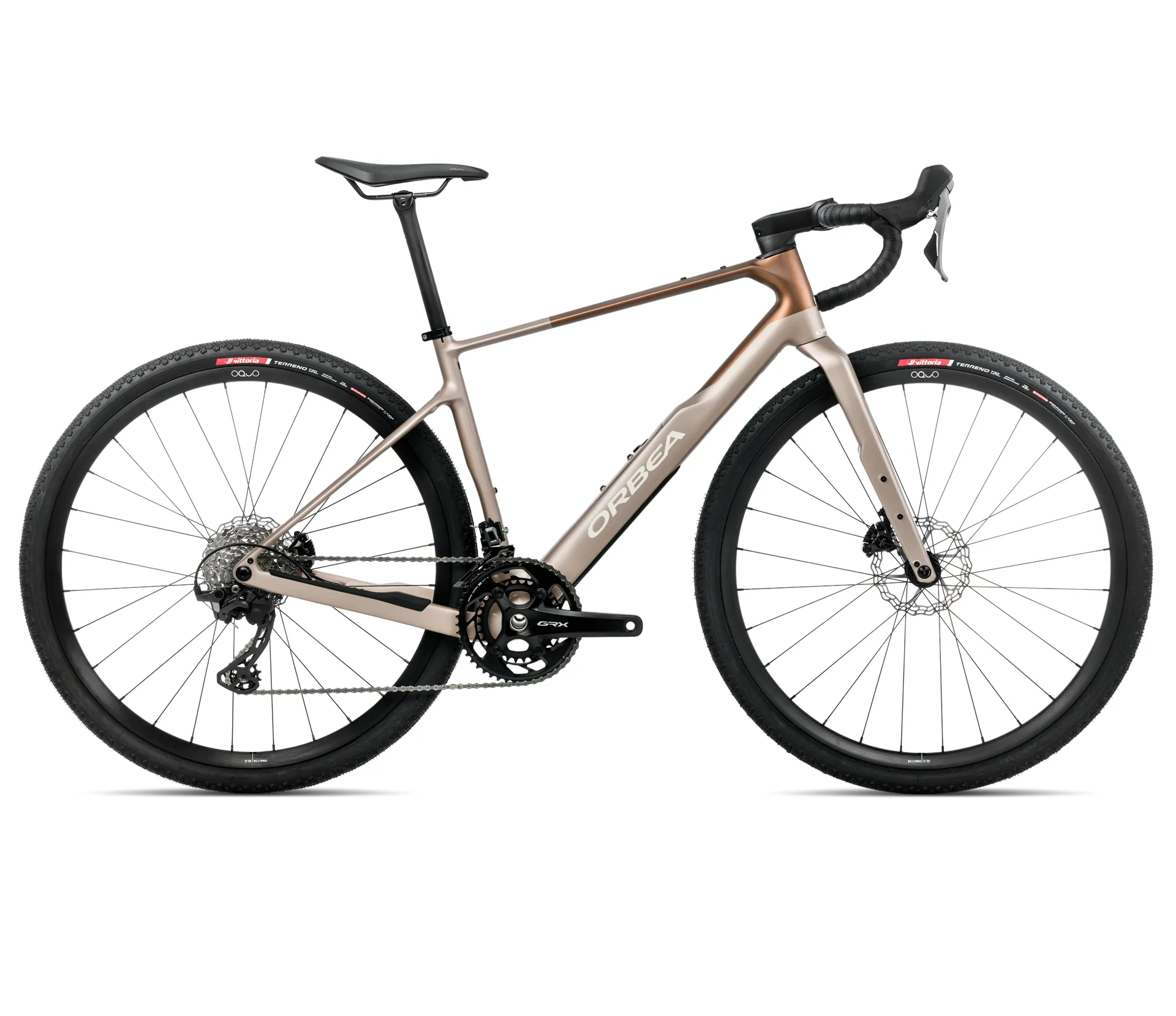

TheOrbea Terra M20 Teamis a purpose-built gravel bike that delivers polished performance across mixed terrain. It’s not a repurposed road frame or albatrossed mountain bike—it’s designed ground-up for gravel riding, featuring Orbea’s OMR carbon frame and a host of rider-friendly features for comfort, control, and versatility
Frameset & Fork

  • Frame: Monocoque OMR carbon, PF30 BB, 1.5″ tapered head tube, power-meter ready, 12×142 mm thru-axle, internal cable routing, LOCKR downtube tool locker, and mudguard-ready.

  • Fork: Terra ICR full-carbon fork with 12×100 mm thru-axle, multi-mount system, and fender compatibility.

Drivetrain & Brakes

  • Crankset: Shimano GRX RX820 (31×48t) for optimized gravel gearing.

  • Shifters & Derailleurs: Shimano GRX RX820 12-speed—proven reliability and precise shifting.

  • Cassette: Wide 11–34t for a versatile gear range.

  • Brakes: Shimano RX820 hydraulic discs for strong, consistent stopping power.

Wheels, Tyres & Cockpit

  • Wheels: Tubeless-ready 700c alloy wheels with 21mm internal width.

  • Tyres: Vittoria Terreno Dry CX 700×38c for fast rolling and grip
  • Handlebar: OC Gravel GR31 with a 70mm reach, 110mm drop, and slight flare for stable handling.
  • Stem: OC Road Performance RP10 (−8° sweep) for a comfortable and confident cockpit setup.

Fit & Components

  • Seatpost: OC Performance XP10 Carbon 27.2 mm, no setback.

  • Saddle: Prologo Akero AGX STN, 155 mm width—chosen for long-distance comfort.

  • Headset: FSA 1.5″ integrated cup—smooth steering and solid build.

Storage & Versatility

  • LOCKR Tool Box: Hidden downtube locker holds tube, CO₂, and tools—streamlining setup for longer rides.

  • Tire Clearance: Accommodates up to 45mm tires (700c) or 50mm (650b), offering adaptability based on riding conditions.


Ride Impressions & Insights

The Terra M20 Team is praised for its agile responsiveness and race-oriented feel. Riders describe it as"a pure gravel racing bike… really fast,"and capable of keeping pace with full-on road bikes.Weighing approximately 8.9 kg stock, it's light enough for competitive builds yet stable enough for long-distance comfort.


✅ Why Choose the Terra M20 Team?

FeatureBenefit
OMR Carbon FrameLightweight strength and refined ride quality.
LOCKR StorageKeeps essential tools secure and accessible.
Shimano GRX RX820 DrivetrainSmooth, reliable shifting tuned for gravel.
Tire VersatilityRun 38 – 45 mm tyres for gravel, or 650b for adventure.
Balanced GeometryConfidence across tarmac and loose surfaces.


TheOrbea Terra M20 Teamis a purpose-built gravel contender for riders who demand speed, versatility, and comfort in one sleek package. With its carbon build, integrated storage, rider-focused geometry, and high-end GRX components, it’s equally at home chasing KOMs on gravel climbs as it is journeying into the unknown.

Technical Information
CategoryComponentDetails
FramesetFrameOrbea Terra carbon OMR Disc, monocoque construction, HS 1.5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, M12xP1 thread, UDH dropout, LOCKR XXL service box, MMS multi-mount system, fender ready
ForkOrbea Terra Race ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru Axle 12x100mm, M12xP1 thread, MMS multi-mount system, fender ready
Steerer TubeFSA 1-1/2" Integrated Aluminium Cup
DrivetrainCranksetShimano GRX RX820 31x48t
ShiftersShimano GRX RX820
CassetteShimano HG710 11-36t 12-Speed
Rear DerailleurShimano GRX RX820
Front DerailleurShimano GRX RX820
ChainShimano M7100
CockpitHandlebarOC Gravel GR31, Reach 70, Drop 110
StemOC Road Performance RP10, -8º
BrakesBrakesShimano RX820 Hydraulic disc
ConfigurationN/A
WheelsWheelsOquo Road Control RC25PRO
TyresVittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
Front Wheel AxleOrbea Thru Axle 12x100mm M12xP1 Hollow
Rear Wheel AxleOrbea Thru Axle 12x142mm M12xP1 Solid inner threaded
ComponentsSeatpostOC Performance XP10 Carbon, 27.2mm, Setback 0
SaddleFizik Terra Argo X7 Aluminium Rail 150mm
AccessoriesMudguardN/A
Handlebar TapeOrbea Anti-Slippery/Shock Proof
StorageAccessories Containers
Sizing Information
SizeRecommended Rider Height (cm)Recommended Rider Height (in)
47155 – 16061.1" – 63.0"
49160 – 16663.0" – 65.4"
51167 – 17265.7" – 67.7"
53173 – 17968.1" – 70.5"
55180 – 18570.9" – 72.8"
57186 – 19173.2" – 75.2"
60192 – 20775.6" – 81.5"
