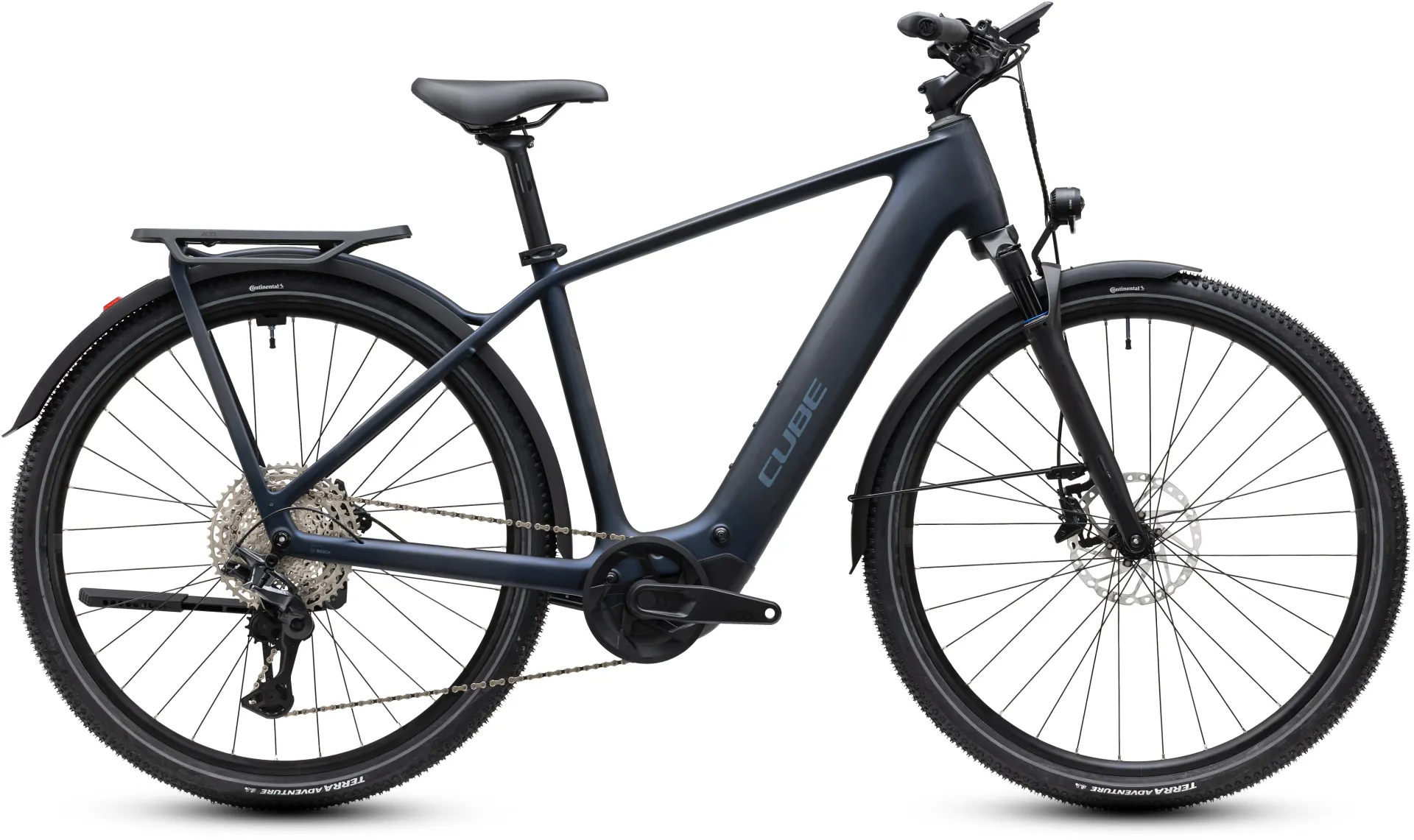

Cube Kathmandu Hybrid c:62 Pro 400x Liquidsteel/Prizm 2027

Season:2027

Brand:Cube

Code:1113100102GryPrizm

TheCUBE Kathmandu Hybrid C:62 Pro 400Xis a lightweight, premium electric trekking bike designed for riders who want comfort, practicality and excellent handling without the weight of a larger e-bike. Its standout feature is the combination of aC:62 carbon frame and Bosch Performance Line SX motor, creating a particularly light and responsive touring bike at just18.4kg.

Bosch Performance Line SX & 400Wh Battery

The lightweightBosch Performance Line SX motorprovides up to60Nm of torque, delivering smooth and responsive assistance while keeping overall bike weight impressively low. It's an excellent system for riders who want natural-feeling assistance rather than the heavier feel associated with larger e-bike motors.

The integratedBosch CompactTube 400Wh batteryis neatly built into the carbon frame, helping provide excellent weight distribution and clean aesthetics. The bike is alsoPowerMore-ready, allowing a compact additional250Wh batteryto be fitted when extra range is required.

TheBosch Kiox 500 colour displayprovides a large, easy-to-read interface for monitoring speed, battery level, riding modes and other key information.

Premium C:62 Carbon Frame

CUBE'sC:62 carbon technologyuses a high proportion of high-modulus fibres reinforced with nanoparticles, creating a frame that is both exceptionally light and strong. The Efficient Comfort Geometry provides a relaxed, stable riding position that's well suited to longer journeys.

The bike also featuresAdvanced Internal Cable Routing, a Boost rear axle and CUBE'sIntegrated Carrier 3.0, which blends the luggage rack neatly into the frame while providing a strong and practical platform for panniers and bags.

Comfortable & Fully Equipped

ASR Suntour NRX32 iL air-sprung fork with 50mm of traveltakes the sting out of potholes and rough roads, while wide50mm Continental Terra Adventure tyresprovide excellent comfort and grip across tarmac, tracks and light gravel.

The Kathmandu comes fully equipped withintegrated mudguards, front and rear lighting, kickstand, bell and luggage carrier, making it ready for commuting, touring and everyday use straight out of the box.

Shimano XT 12-Speed Gearing

The high-qualityShimano XT 12-speed rear derailleuris paired with a10-51T cassette, providing a huge range of gears for everything from fast flat riding to steep climbs.

PowerfulShimano MT410 hydraulic disc brakes with 180mm rotors front and rearprovide reliable stopping power and excellent control in changing weather conditions.

Technical Information

Frame

frame

C:62® Advanced Twin Mold, Efficient Comfort Geometry, Boost148, Fixed Integrated Battery, Flat Mount Disc, Integrated Carrier 3.0, Advanced Internal Cable Routing, UDH™

size

Classic: 50cm, 54cm, 58cm, 62cm

Suspension

Suspension fork

SR Suntour NRX32 iL, Tapered, 15x100mm, 50mm

E-bike system

drive unit

Bosch Drive Unit Performance SX max. 60Nm (BDU31)

Remote

Bosch LED Remote

battery

Bosch CompactTube 400

display

Bosch Kiox 500

charger

Bosch 2A


Drivetrain & brakes

brake system

Shimano BR-MT410, Hydr. Disc Brake (180/180)

rear derailleur

Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed

shifters

Shimano Deore SL-M6210-IR, Direct Attach, Single Click

crankset

ACID MTB Hybrid Pro, 38T

cassette

Shimano Deore CS-M6100, 10-51T

chain

KMC e12

Cockpit

headset

Acros AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Stem

CUBE Performance Stem SLX, 31.8mm

handlebar

CUBE Comfort Trail Bar, 700mm

grips

ACID Travel Comfort

Wheels

wheelset

ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

tyres

Continental Terra Adventure, 50-622

Finishing kit

saddle

ACID Sequence 180 Pro Bubble Foam

seat post

Newmen Evolution, 31.6mm

pedals

ACID PP Trekking

front light

ACID Front Light PRO-E 150 X-Connect, 12V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 60 Integrated Carrier 3.0

bell

Ring Bell

carrier

ACID Integrated Carrier 3.0, RILink HPP

extras

Schwalbe Aerothan™ Inner Tubes w/ ClikValve

Product information

colour

liquidsteel´n´prizm

weight

18,4 kg

Art. No

1113100

Sizing Information

Geometry

50 cm54 cm58 cm62 cm
Seat tube440490540590
Top Tube Horizontal582593604615
Seat angle75°75°75°75°
Head tube angle70°70°70°70°
Chainstays490490490490
Head tube130150170190
Wheelbase1127114011531166
BB-Height to Hub75757575
Protrusion height - 80mm773813850883
Reach397403408414
Stack618637656675

Ergonomics

50 cm54 cm58 cm62 cm
Stem length75757575
Angle stem18°18°18°18°
Handlebar width700700700700
Crank length165165165165
Length seat post300350350350
Diameter seatpost31.631.631.631.6
Max. insertion depth seat post260280300300
Diameter tire maximum734734734734
Width tire maximum50505050
