The Cube Touring Hybrid EXC 500 Trapeze Frame E-Hybrid Bike 2022 is a beatifully manufactured, comfortable, versatile and carefully though out e-Bike.
The Cube Touring Hybrid EXC 500 Trapeze Frame E-Hybrid Bike 2022 is a beatifully manufactured, comfortable, versatile and carefully though out e-Bike.
Cube

Cube Touring Hybrid EXC 500 Trapeze Frame E-Hybrid Bike 2022

£2,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.
30 Day Returns

We offer a 30 day returns policy.

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

A few types of goods are exempt from being returned. These include perishable goods such as food, nutrition bars and gift cards - bought in store or online.

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds may be granted at our discretion:

  • Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
  • Any item that is returned more than 30 days after delivery.

Refunds

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds


If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at info@stirlingcycles.co.uk.

Exchanges

We only replace items if they are defective or damaged. If you no longer wish to keep your item as per our return policy above send us an email at info@stirlingcycles.co.uk and send your item to: Stirling Cycles, 18b Airthrey Road, FK9 5JR.

Gifts

If you received this item as a gift and you wish to return it, you will need to provide proof of purchase and you will receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

We will only issue a refund to the gift giver as per the terms of our returns/ refunds policy above.

Shipping

To return your product, you should mail your product to: Stirling Cycles, 18b Airthrey Road, FK9 5JR

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are also non-refundable. If you receive a refund, the initial shipping costs will be deducted from your refund.

Depending on where you live, the time it takes for your exchanged product to reach you may vary.

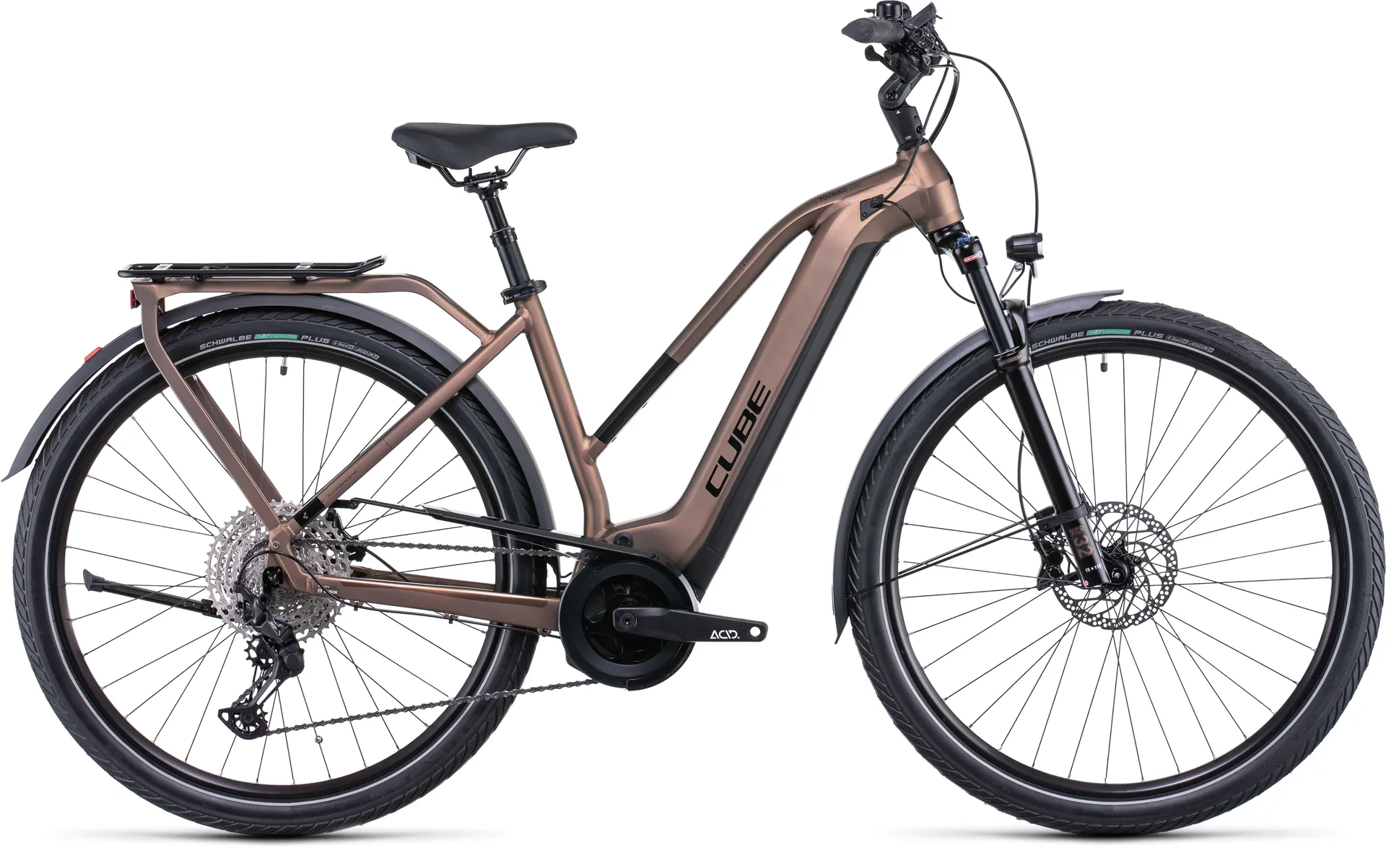

Cube Touring Hybrid EXC 500 Trapeze Frame E-Hybrid Bike 2022

Season:2022

Brand:Cube

Code:531161

Built around Bosch's powerful third-generation motor and PowerTube battery, the Cube Touring Hybrid comes in Classic Men's, Trapeze, or Easy Entry frame options with each version featuring the same attention to detail and geometry that's designed to keep the centre of gravity low for safety and easy handling.

Efficient Comfort Geometry does exactly what it says, putting you in the ideal position to enjoy every ride. The Integrated Carrier is a masterpiece of understated engineering excellence, providing a strong and rigid means of carrying your day-to-day possessions with you.

The Touring Hybrid EXC is the versatile, easy-to-live-with and reliable e-bike tourer you've been looking for. With an easily adjustable, smooth and comfortable air-sprung Suntour suspension fork, adjustable stem and a quality suspension seatpost - it'll deliver miles of smiles. Shimano's legendary reliable and wide-ranging XT 1x12 transmission works in tandem with third-generation Bosch power and Cube's PowerTube frame design to deliver you to your destination in style.

Powerful four-piston Shimano hydraulic disc brakes stop you safely, whatever the conditions. Wide, comfortable tyres plus a full complement of accessories including Integrated Carrier, mudguards, kickstand and lighting system - ensure you have everything you need, wherever you're headed.

Technical Information
FRAME
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0

FORK
SR Suntour XCR32 LO-R Air, Tapered, 15x110mm, 100mm, Lockout

DRIVE UNIT
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)

BATTERY
Bosch PowerTube 500

DISPLAY

Bosch Intuvia

CHARGER

Bosch 2A

BRAKE SYSTEM
Shimano BR-MT420, Hydr. Disc Brake (180/180)

REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

CRANKSET
ACID E-Crank, 40T, 175mm (EE: 170mm)

CASSETTE
Shimano Deore CS-M6100, 10-51T

CHAIN
Shimano CN-M6100

FRONT HUB
Shimano HB-MT400-B, 15mm, Boost, Centerlock

REAR HUB
Shimano FH-MT401, QR, Centerlock

RIMS
CUBE EX23, 36H, Disc, Tubeless Ready

TYRES
Schwalbe Energizer Plus, Performance, Green Guard, 55-622

STEM
CUBE Comfort Stem Pro, 31.8mm, Adjustable

HANDLEBAR
CUBE Comfort Trail Bar, 700mm

GRIPS
Natural Fit Comfort

SEAT POST
CUBE Suspension Seatpost HD, 30.9mm

SEATCLAMP
CUBE Varioclose, 34.9mm

SADDLE
Natural Fit Sequence Comfort

HEADSET
M/Z: ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS
AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

PEDALS
ACID PP Trekking

FRONT LIGHT
CUBE Shiny 50 Lux, 12V, DC

REAR LIGHT
ACID Mudguard Rear Light PRO-E, 12V, DC

KICKSTAND
CUBEstand Cmpt

MUDGUARDS
ACID 65 BB-Mount

BELL
Easy Bell

CARRIER
CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible

WEIGHT
26,3 kg

COLOUR
mocha´n´black

ART. NO
531161
Sizing Information
GEOMETRY (mm)

Trapeze 46 cm / XS

Trapeze 50 cm / S

Trapeze 54 cm / M

SEAT TUBE

440

480

520

TOP TUBE HORIZONTAL

584

595

606

SEAT TUBE ANGLE

73

73

73

HEAD TUBE ANGLE

69.5

69.5

69.5

CHAIN STAYS

488

488

488

HEAD TUBE

105

105

135

WHEELSBASE

1139.9

1150.9

1163.6

BB-HEIGHT TO HUB

67.5

67.5

67.5

STANDOVER HEIGHT

796.4

885.8

780.3

REACH

392.6

404.4

406.6

STACK

626.5

626.5

654.6
